Conveyor system with textile belt for products up to 10 kg. Conveyor belt systems of the TRANSTRON S type are used for conveying light products on a textile belt. The small roller diameter allows easy integration, including in production lines with short and sensitive products. A total load of up to 10 kg is possible depending on the speed. A quick-change version for the belt is available for easy cleaning and maintenance.

Conveyor system with knife edge for sensitive products up to 15 kg. Conveyor belt systems of the TRANSTRON K type are used for conveying loose, short or very sensitive products. Different transfer types from the rolling edge to the fixed knife edge with a small radius facilitate damage-free transfer. Optionally, a tape retraction is also possible for separation. A total load of up to 15 kg is possible depending on the speed.

Conveyor system with textile belt for products up to 20 kg. Conveyor belt systems of the TRANSTRON M type are used for conveying medium-sized products or formats on a textile belt. The medium-sized roller diameter allows the delivery of belt widths for complete format sets or large packs. A total load of up to 20 kg is possible depending on the speed. A quick-change version for the belt is available for easy cleaning and maintenance.

Conveyor system with modular belt for products up to 40 kg. Conveyor belt systems of the TRANSTRON C type are used for conveying open products or for strict cleaning requirements. Different chain types allow the safe conveying of products in jars, bottles, E2 boxes or loose on the conveyor belt. A total load of up to 40 kg is possible depending on the speed.

Conveyor system with textile belt for products up to 60 kg. Conveyor belt systems of the TRANSTRON L type are used for conveying heavy products or formats on a textile belt. The large roller diameter allows the delivery of belt widths for complete format sets or large packs. A total load of up to 60 kg is possible depending on the speed (Option: up to 100 kg with a special drive). A quick-change version for the belt is available for easy cleaning and maintenance.

High-end tunnel detector with integrated evaluation electronics for assembly in conveyor belts. Metal detectors of the METRON 07 CI type are used in a wide range of applications. They represent the highest quality option for metal detection in our portfolio of tunnel detectors. They can be installed in conveyor belts or in product chutes. The available dimensions are suitable for the inspection of both small and large products. The compact design does not require an additional control cabinet.

High-end metal detector for integration into pumping lines for liquids. Metal detectors of the PIPELINE 07 type are used for the examination of liquid and pasty masses in pipelines. Its hygienic structure and easy cleanability prevent cross-contamination between product batches. Variants such as aseptic or clean-in-place are also available, as are supplementary warning devices. With different designs, they can be perfectly adapted to cleaning conditions and pipe connections.

High-end metal separator with separation diverter for integration into pumping lines for liquids. Metal separators of the PIPELINE 07 O type are used for the examination of liquid and pasty masses in pipelines. Its hygienic structure and easy cleanability prevent cross-contamination between product batches. Variants such as aseptic or clean-in-place are also available, as are separation mechanisms for lumpy or long-fibred products. With different designs, they can be perfectly adapted to cleaning conditions and pipe connections.

Metal separator with separation diverter for integration into intermittent suction conveyor lines. Metal separators of the P-TRON 03 FM type are used for the examination of granulates or ground material in intermittent suction conveyor lines. Versions for horizontal and vertical installation, as well as for high product temperatures after the dryer, are available. The P-TRON 05 GM is available for continuous suction conveyor lines or pressure conveyor lines. Crimping valves and rotary flaps replace the pendulum flap of the P-TRON 03 FM here.

Metal separator with separation diverter for integration into pneumatic conveyor lines. Metal separators of the P-TRON 05 GM type are used for the examination of granulates, ground material or powders in pneumatic conveying lines. Versions for horizontal and vertical installation, as well as for high product temperatures after the dryer, are available. The systems can also be specially approved for potentially explosive areas. The P-TRON 03 FM is available for intermittent suction conveyor lines with short conveyor cycles. A pendulum flap replaces the crimping valves or rotary flaps of the P-TRON 05 GM here.

High-end metal separator with separation diverter for integration into pneumatic conveyor lines. Metal separators of the P-TRON 07 GM type are used for the examination of granulates, ground material or powders in pneumatic conveying lines. Versions for horizontal and vertical installation, as well as for high product temperatures after the dryer, are available. The systems can also be specially approved for potentially explosive areas.

Metal separator for examining granulate and ground material in free fall. Metal separators of the QUICKTRON 03 R type are used for the examination of granulates and ground material in material preparation. Different nominal widths allow easy assembly in different production environments. The solid housing reliably shields the sensitive interior from mechanical damage.

Flexible metal separator for installation in free-fall lines. Metal separators of the QUICKTRON 05 A type are used for the examination of granulates, ground material or powders in free fall. This series is extremely flexible in its design and can be perfectly adapted to the project conditions. Nominal diameters of between 50mm and 400mm are available in many gradations. Rectangular sensing shafts for even higher throughputs can also be implemented. The particle size should not exceed 10 mm.

Metal separator for examining coarse ground material in free fall. Metal separators of the QUICKTRON 05 B type are used for the examination of coarse ground material, shards or films in free fall. This separator is specially developed to safely separate metal parts from coarser ground material.

Metal separator for examining films in free fall. Metal separators of the QUICKTRON 05 E type are used for the examination of long film chips in free fall. Different nominal widths, as well as inlet and outlet adaptors, allow easy installation in different production environments.

High-end metal separator for examining bulk materials in free fall. Metal separators of the QUICKTRON 07 RH type are used for the examination of powders and granulates in free-fall lines. They are available in nominal diameters of up to 300 mm and cover all areas of application, from the laboratory to lorry loading. Its hygienic structure and easy cleanability prevent cross-contamination between product batches. Depending on the requirement, they can increase process reliability or also perform the inspection of outgoing goods.

Mobile metal detector for connection to a vacuum filler. Metal detectors of the MEATLINE 07 series are connected to the outlet of vacuum fillers in sausage production. Mechanical connections for all common sausage and ham fillers are available, as well as electronic control adapters for signal exchange between the filler, metal detector and subsequent systems such as clippers or linkers.

Mobile metal detector for connection to a vacuum filler, including linking transmission extension. Metal detectors of the MEATLINE 07 series are connected to the outlet of vacuum fillers in sausage production. Mechanical connections for all common sausage and ham fillers are available. The integrated rotary transmission extension allows the combination of the metal detector with a holding device with a rotary drive from the filler.

Mobile metal detector for connection to a vacuum filler, including rotary separation mechanism. Metal separators of the MEATLINE 07 O series are connected to the outlet of vacuum fillers in sausage production. Mechanical connections for all common sausage and ham fillers are available, as well as electronic control adapters for signal exchange between the filler, metal detector and subsequent systems such as clippers or linkers.

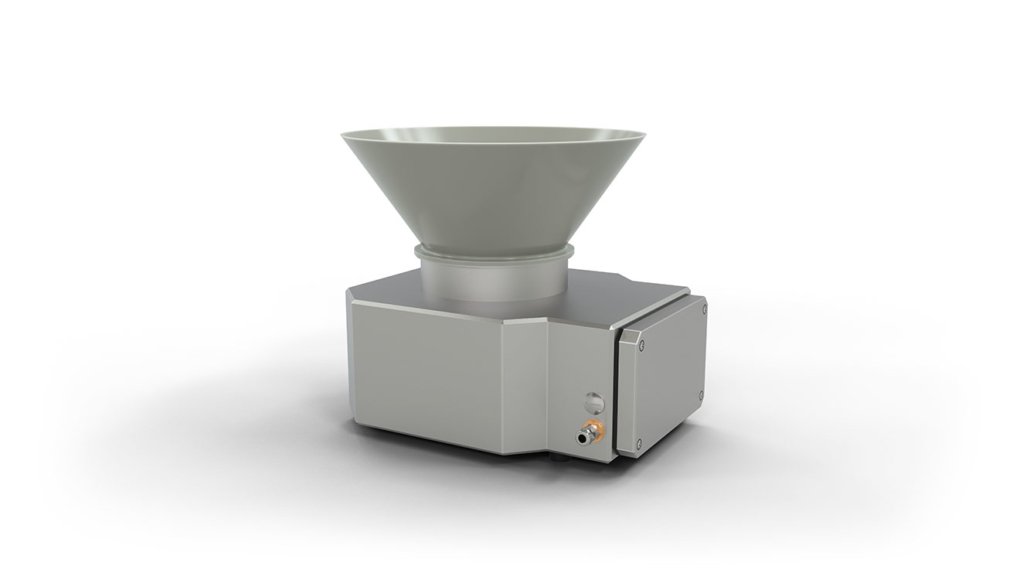

High-end metal detector with round through opening and minimised space requirement. Metal detectors of the METRON 07 FL type are usually used in the region between the weighing unit and the forming shoulder of a tubular bagging machine (VFFS). They represent a high-quality option for metal detection in our portfolio of round apertures. The compact design and the strong shielding allow installation in the smallest assembly spaces. Their design, with alternating funnels, allows precise adaptation to different bag diameters.

High-end metal detector with round through opening and maximum interference shielding. Metal detectors of the METRON 07 PW type are used in a wide range of applications. They represent a high-quality option for metal detection in our portfolio of round apertures. They can be installed in pneumatic conveying systems or in free fall. The available dimensions are suitable for assembly in pipelines from 30mm to 300mm. The special coil assembly ensures maximum shielding against interfering fields and reduces electrostatic charges in the product.

Simple metal detector with round through opening for assembly in pipeline systems. Metal detectors of the METRON 05 CR type are used in a wide range of applications. They represent a solid option for metal detection in our portfolio of round apertures. They can be installed for liquid products, in pneumatic conveying or in free fall. The available dimensions are suitable for assembly in pipelines from 30mm to 450mm. For stricter requirements, we recommend using the better shielded type METRON 07 PW or the compact METRON 07 FL.

High-end tunnel detector with integrated evaluation electronics for assembly in conveyor belts. Metal detectors of the METRON 07 CI type are used in a wide range of applications. They represent the highest quality option for metal detection in our portfolio of tunnel detectors. They can be installed in conveyor belts or in product chutes. The available dimensions are suitable for the inspection of both small and large products. The compact design does not require an additional control cabinet.

High-end metal detector with round through opening and integrated evaluation electronics. Metal detectors of the METRON 07 CRI type are used in a wide range of applications. They represent a high-quality option for metal detection in our portfolio of round apertures. They can be installed for liquid products, in pneumatic conveying or in free fall. Due to their compact design, with integrated evaluation electronics and display, they do not require an additional control cabinet.

High-end metal separator for mounting on tablet presses or dust collectors. Metal separators of the PHARMATRON 07 HQ type are used for the examination of capsules, tablets and sugar-coated tablets after the tablet press or dust collector. Its hygienic structure and easy cleanability prevent cross-contamination between product batches. Variants such as dustproof or wash-in-place are also available, as are supplementary qualification documents.
